| General Profile |

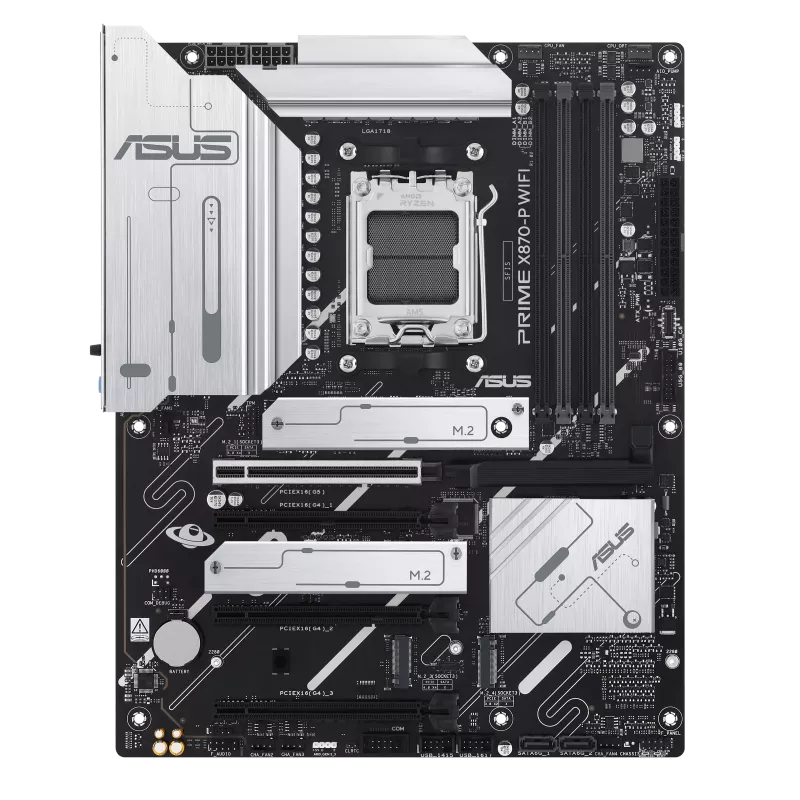

Model: PRIME X870-P WIFI-CSM
Form Factor: ATX Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
News & Updates: Socket AM5, Please visit our GLOBAL website to check and download the latest updates. |
| CPU, Chipset & Memory |
CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD X870 Chipset
Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP) |
| Graphics, Slots & Storage |
Graphics: 1 x HDMI™ port | 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots:
– AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode)
– AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
– AMD X870 Chipset: 3 x PCIe 4.0 x16 slots (support x1 mode)
Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
– AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
– AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
– AMD X870 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode); 2 x SATA 6Gb/s ports
RAID Support: AMD RAIDXpert2 Technology
– Ryzen™ 9000 Series Processors: RAID 0/1/5/10
– Ryzen™ 8000 Series Processors: RAID 0/1
– Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Networking, USB & Audio |
Ethernet: 1 x Realtek 2.5Gb Ethernet | ASUS LANGuard
Wireless & Bluetooth: Wi-Fi 7 (2×2 Wi-Fi 7 802.11be, Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate) | Bluetooth® v5.4
USB:
– Rear USB (Total 10 ports): 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
– Front USB (Total 7 ports): 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |
| I/O Connectors |

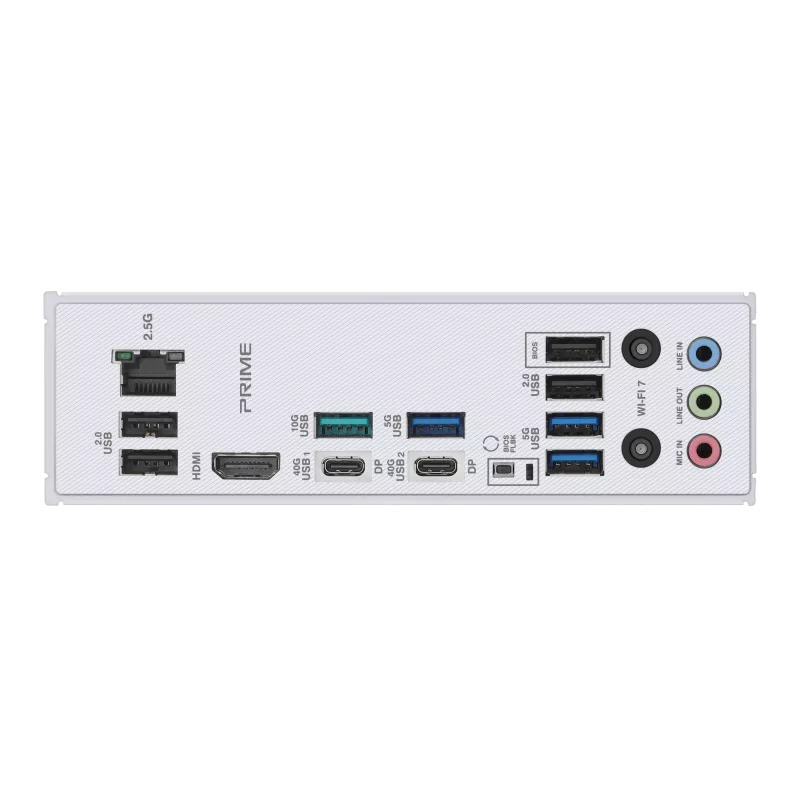

Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button
Internal I/O Connectors:
– Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
– Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
– Storage Related: 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports
– USB: 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
– Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header |
| Features, Software & BIOS |
Special Features:
– ASUS 5X PROTECTION III: DIGI+ VRM (- Digital power design with DrMOS), LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O
– ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot
– ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design
– ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, ProCool, Pre-mounted I/O shield, SafeSlot
– Aura Sync: Addressable Gen 2 headers
Software Features:
– ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), Power Saving), ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial)
– UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey)
– Remote Management Features: IT Management software supported – ASUS Control Center Express(ACCE)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE |
| Accessories & OS |
Accessories:
– Cables: 2 x SATA 6Gb/s cables

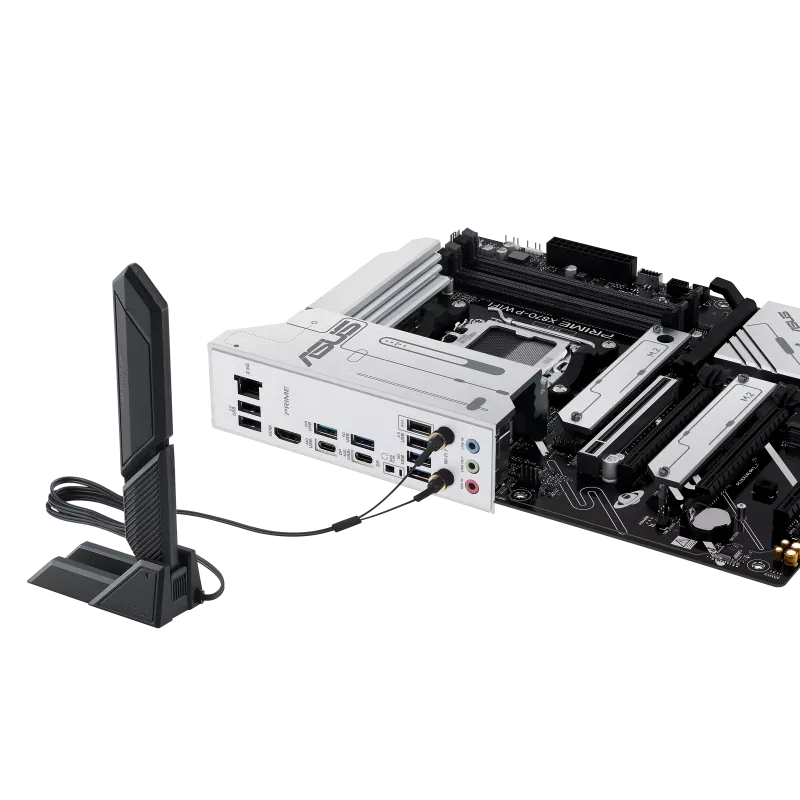

– Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD
– Documentation: 1 x ACC Express Activation Key Card, 1 x Quick start guide
Operating System: Windows 11 |
