| General Profile |

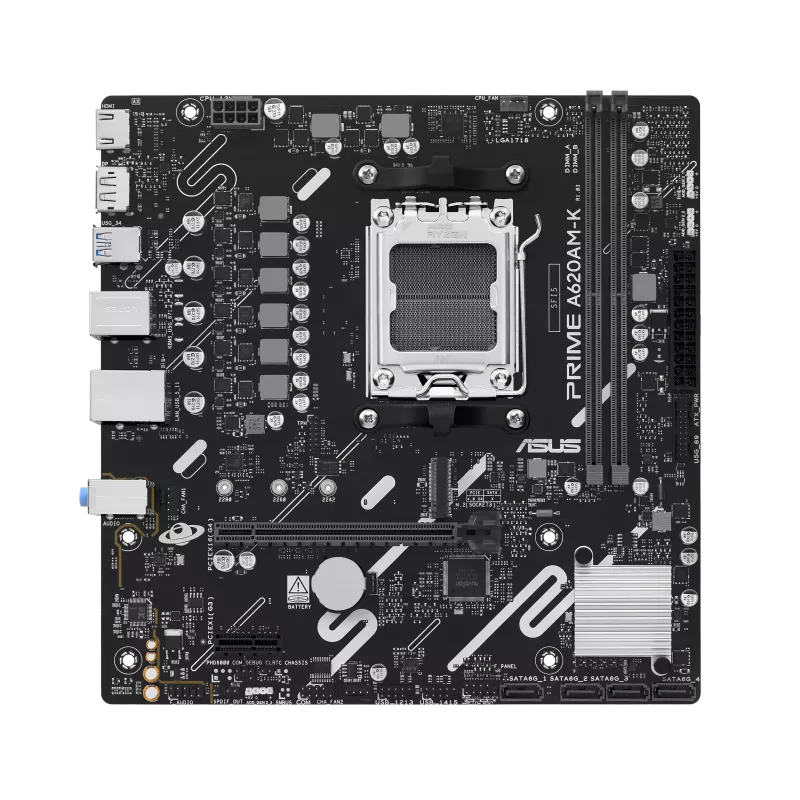

Model: PRIME A620AM-K-CSM
Form Factor: micro-ATX Form Factor | 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
News & Updates: Socket AM5, Please visit our GLOBAL website to check and download the latest updates. |
| CPU, Chipset & Memory |
CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* | Supports up to AMD 120W CPU
Chipset: AMD A620A Chipset
Memory: 2 x DIMM slots, max. 128GB, DDR5
Supports up to 7200+MT/s(OC) with Ryzen™ 9000 & 7000 Series Processors, 7600+MT/s(OC) with Ryzen™ 8000 Series Processors, Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP) |
| Graphics, Slots & Storage |
Graphics: 1 x DisplayPort** | 1 x HDMI™ port***
Expansion Slots:
– AMD Ryzen™ 9000 & 7000 Series Desktop Processors*: 1 x PCIe 4.0 x16 slot (supports x16 mode)
– AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
– AMD A620A Chipset: 1 x PCIe 3.0 x1 slot
Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
– AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors: M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
– AMD A620A Chipset: 4 x SATA 6Gb/s ports
RAID Support: AMD RAIDXpert2 Technology*
– Ryzen™ 9000 Series Processors: RAID 0/1/5/10
– Ryzen™ 8000 Series Processors: RAID 0/1
– Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Networking, USB & Audio |
Ethernet: 1 x Realtek 1Gb Ethernet | ASUS LANGuard
USB:
– Rear USB (Total 6 ports): 4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
– Front USB (Total 6 ports): 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |
| I/O Connectors |
Back Panel I/O Ports: 4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors:
– Fan and Cooling Related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers
– Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector
– Storage Related: 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports
– USB: 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
– Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin Front Panel System header |
| Features, Software & BIOS |
Special Features:
– ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core, Stainless-steel back I/O
– ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot
– ASUS Thermal Solution: Aluminum heatsink design
– Aura Sync: Addressable RGB Gen 2 headers
Software Features:
– ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS DriverHub (ASUS CPU-Z), Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial)
– UEFI BIOS: AI Cache Boost, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode)
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE |
| Accessories & OS |
Accessories:
– Cables: 2 x SATA 6Gb/s cables
– Miscellaneous: 1 x I/O shield, 1 x Screw package for M.2 SSD
– Documentation: 1 x ACC Express activation key card, 1 x Quick start guide
Operating System: Windows 11, Windows 10 64-bit |
